Use Labels to Check if File Exists
Robomotion•Updated 9 months ago
Overview
Uses Label and GoTo to structure a loop that rechecks file existence — a non-sequential flow pattern useful for polling.
Use Labels to Check if File Exists
Although flows run sequentially by default, transferring the running point is essential for many automation scenarios. Labels act like anchors and allow users to jump to them from anywhere in the flow.
What Use Labels to Check if File Exists can do
- Input Dialog titled
Check if file exists, messagePlease populate a file name to check if it exists in your desktop folder., defaultFileName->msg.user_input. - Branch on cancel (
Core.Programming.Function,outputs: 2) — empty input short-circuits toCore.Flow.Stop. - Build path (
Core.Programming.Function) —msg.candidate_path = global.get('$Home$') + '\Desktop\' + msg.user_input. Core.FileSystem.PathExistsonmsg.candidate_path->msg.exists.- Branch on existence (
Core.Programming.Function,outputs: 2) — true goes toCore.Flow.GoToFile_Exists, false toCore.Flow.GoToFile_Does_Not_Exist. File_Existslabel -> buildmsg.dialog_text = "Filename: '<name>' exists in your desktop folder."->Core.Dialog.MessageBoxtitledFile found!->Core.Flow.Stop.File_Does_Not_Existlabel -> buildmsg.dialog_text = "Filename: '<name>' doesn't exist in your desktop folder."->Core.Dialog.MessageBoxtitledFile not found!->Core.Flow.Stop.
Behind the scenes
- This is functionally identical to
use-conditionals-to-check-if-file-exists; the flow teaches Label + GoTo as an alternative to inlineIF/ELSE. Keep the label nodes prominent — they are the teaching point, not incidental. - Because

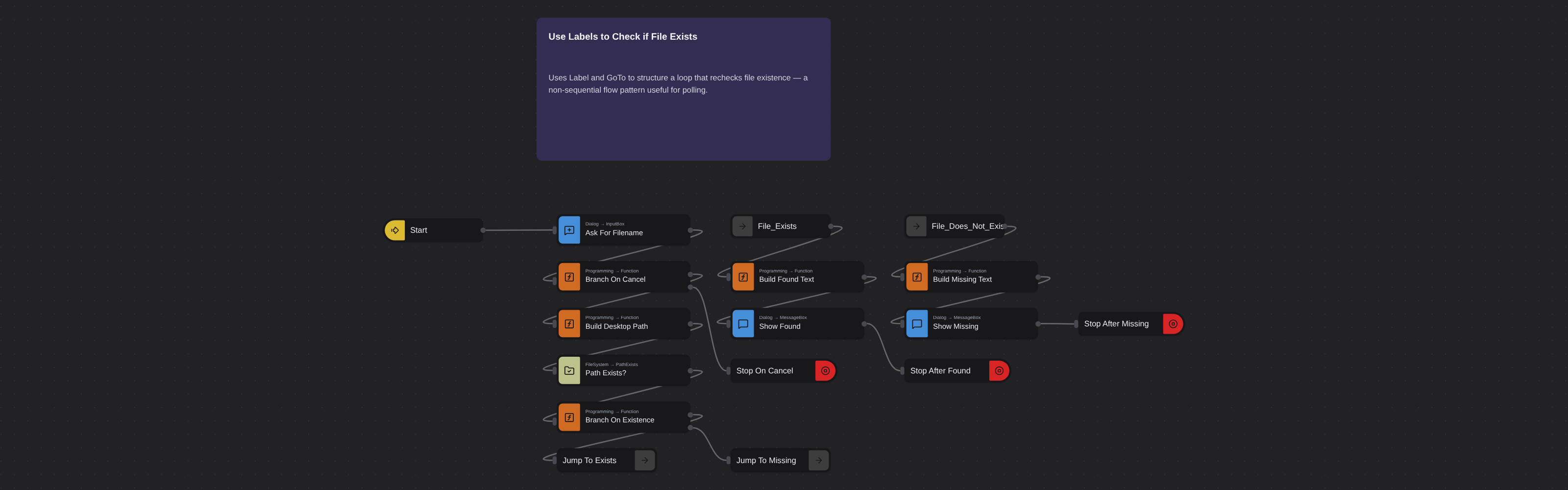

Core.Flow.GoTois terminal, the Designer layout is two parallel label-rooted chains; the main chain up to the GoTo is one sub-graph, and each label + MessageBox + Stop is its own disconnected chain that the GoTo jumps into.
