Get Images from PDF

Apart from text content, PDF files can contain important information in the form of images. Robomotion offers a PDF node that extracts images from PDF files and enables users to access and process these images independently of the original file.

What Get Images from PDF can do

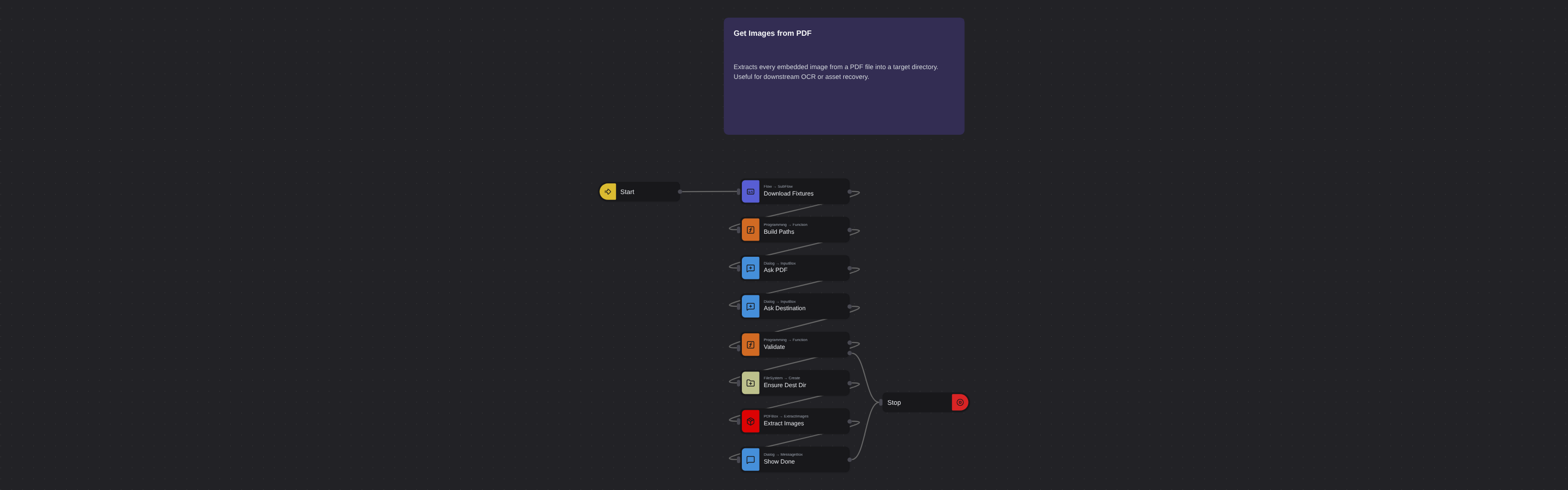

• Core.Flow.SubFlow downloads fixtures; a Function builds msg.source_pdf (.../fixtures/with_images.pdf) and msg.images_dir (.../fixtures/images).
• Input Dialog titled Extract images from PDF, message Select the PDF to extract image(s) from:, default msg.source_pdf → msg.pdf_path.
• Input Dialog titled Extract images from PDF, message Select to folder to save the extracted images to..., default msg.images_dir → msg.destination_folder.
• Validate (Core.Programming.Function, outputs: 2) — proceed when msg.pdf_path ends in .pdf and msg.destination_folder is set; otherwise Core.Flow.Stop.
• Core.FileSystem.Create with optType: 'directory' ensures msg.destination_folder exists, then Robomotion.PDFBox.ExtractImages writes PNGs prefixed PDF Image to that folder.
• Core.Dialog.MessageBox titled Done! (type info) confirms with Images extracted successfully..

Behind the scenes

• Robomotion.PDFBox.ExtractImages names outputs PDF Image 1.png, PDF Image 2.png, … — the node owns the numeric suffix and extension, so optPrefix only controls the human-readable stem.
• optExportType: 'png' normalises output regardless of the source image format inside the PDF, which makes downstream OCR and thumbnailing easier than dealing with a mix of JPEG, TIFF and DCT streams.
• Core.FileSystem.Create with continueOnError: true acts as an mkdir -p — harmless when the folder already exists and avoids a pre-check branch.
• The validator rejects empty msg.destination_folder before extraction, so an empty dialog response short-circuits to Core.Flow.Stop instead of failing inside the PDF node.
