Merge PDFs

Robomotion enables users to implement advanced logic in PDF-handling flows to facilitate complex scenarios. For example, PDF nodes, loops, and conditionals can be deployed to create a flow that merges as many PDF files as the user desires.

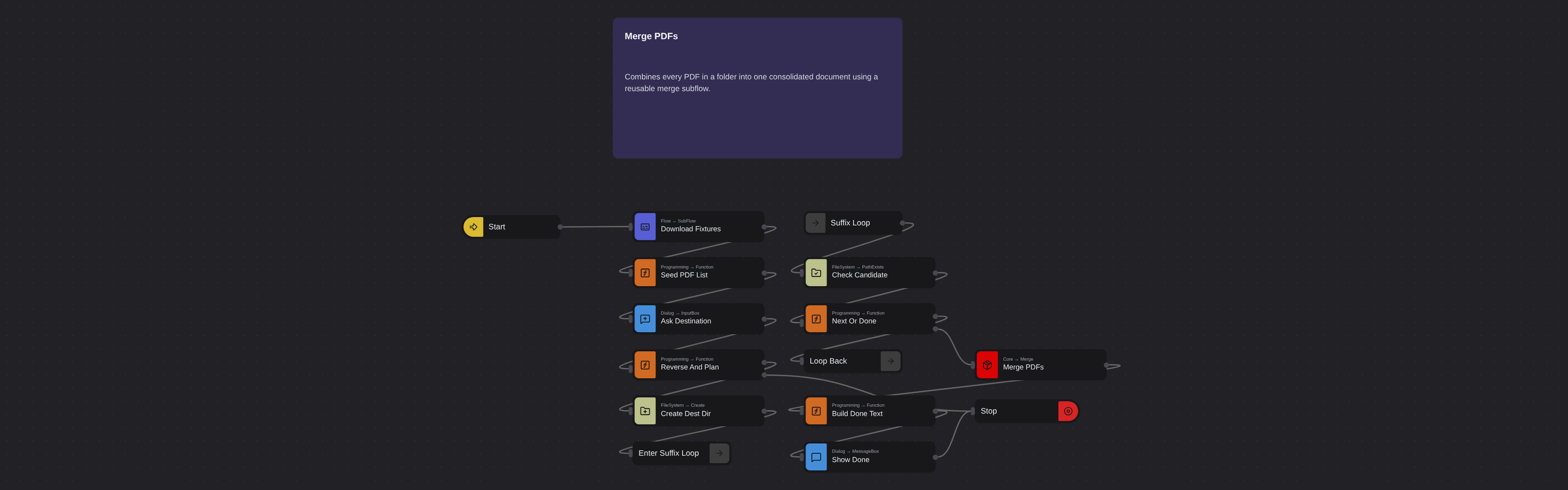

What Merge PDFs can do

• Download Fixtures subflow then Seed PDF List (Core.Programming.Function) initialises msg.pdf_list with four sample PDFs under $Home$/templates/pdf-automation/merge-pdfs/fixtures and sets msg.default_dest.
• Core.Dialog.InputBox titled Merge multiple PDFs into one prompts for the output folder → msg.destination_folder.
• Reverse And Plan (Core.Programming.Function, outputs: 2) — stops when the folder is empty; otherwise reverses msg.pdf_list, and seeds msg.candidate_path as <dest>\MergedFile.pdf.
• Core.FileSystem.Create ensures the folder exists, then a Core.Flow.Label/Core.FileSystem.PathExists loop increments msg.suffix_idx until msg.candidate_path is free and stores it as msg.merged_path.
• Robomotion.PDFProcessor.Core.Merge writes msg.pdf_list to msg.merged_path, then Core.Dialog.MessageBox titled Done! shows msg.dialog_text with the final path.

Behind the scenes

• The reverse step is deliberate — users expect the last-picked document to appear first in the merged output. Preserve it when adapting the flow.
• Robomotion.PDFProcessor.Core.Merge accepts a per-file password list via its PasswordDelimiter parameter; the flow leaves it unused but the field remains available for password-protected inputs.
• The suffix loop preserves the sequential-suffix behaviour — MergedFile.pdf, MergedFile_2.pdf, etc. — so repeated runs never overwrite a previous output.
