Concatenate Text Files

Reading data from multiple sources and consolidating it in a single file is standard in most document-related operations. Robomotion lets you automate these tasks and effortlessly transfer information across numerous documents.

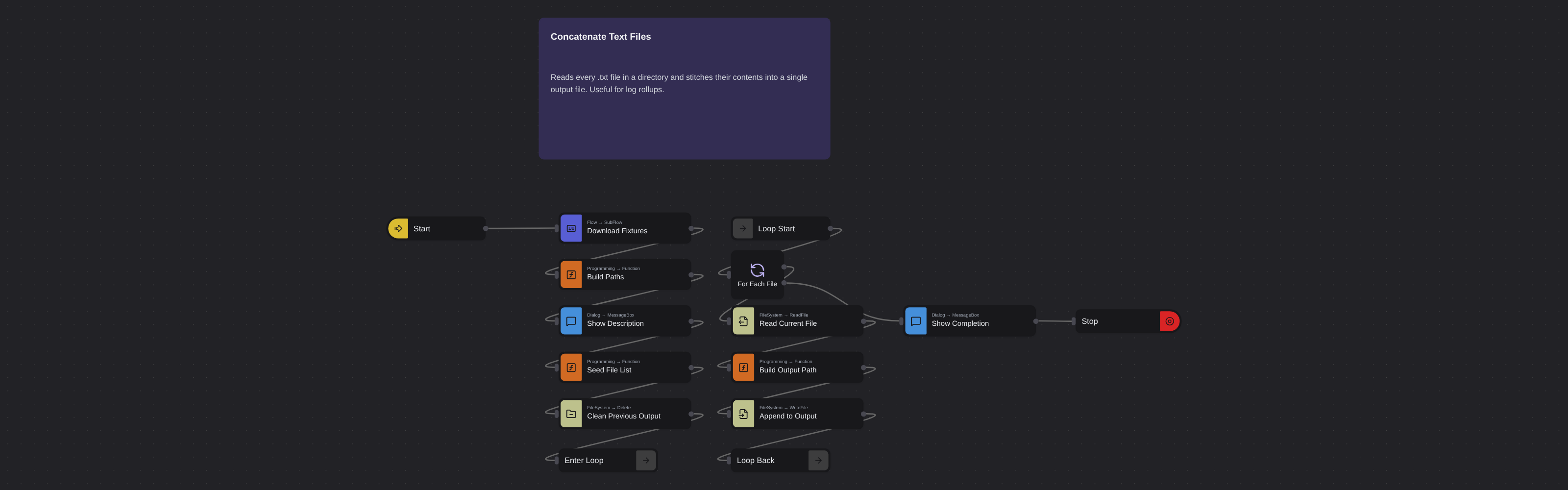

What Concatenate Text Files can do

• Build paths (Core.Programming.Function) — sets msg.fixtures_dir under $Home$/templates/.../fixtures and msg.output_file_path to fixtures/ConcatenatedFiles.txt.
• Intro dialog (Core.Dialog.MessageBox, info) titled Description explaining that the flow stitches multiple text files into one.
• Seed list (Core.Programming.Function) → msg.files_to_concatenate = [fixtures/part1.txt, fixtures/part2.txt].
• Clean previous output (Core.FileSystem.Delete, continueOnError: true) against msg.output_file_path, then Core.Flow.GoTo into Loop Start.
• Iterate (Core.Programming.ForEach) over msg.files_to_concatenate → msg.current_file, msg.current_index.
• Read (Core.FileSystem.ReadFile, optBase64: false) from msg.current_file → msg.current_file_contents.
• Build output (Core.Programming.Function) — derives msg.output_path as <dirname of current_file>\\ConcatenatedFiles.txt and sets msg.line_to_write = msg.current_file_contents + '\n'.
• Append (Core.FileSystem.WriteFile, optMode: append, optBase64: false) to msg.output_path, then Core.Flow.GoTo back to Loop Start.
• Completion dialog (Core.Dialog.MessageBox, info) titled Example completed! once the iterator exits, then Core.Flow.Stop.

Behind the scenes

• The output file lives in the directory of each source file — if the selected files come from multiple directories, each directory gets its own ConcatenatedFiles.txt. This is intentional to match the ported behaviour.
• Core.FileSystem.WriteFile in append mode is called once per source file, so a pre-existing ConcatenatedFiles.txt is deleted up front to guarantee a clean start.
• Each file's contents are suffixed with \n before being appended so boundaries remain visible even when source files don't end with a newline.
• The completion dialog sits on the iterator's exit edge, so it runs once after every file has been processed.
